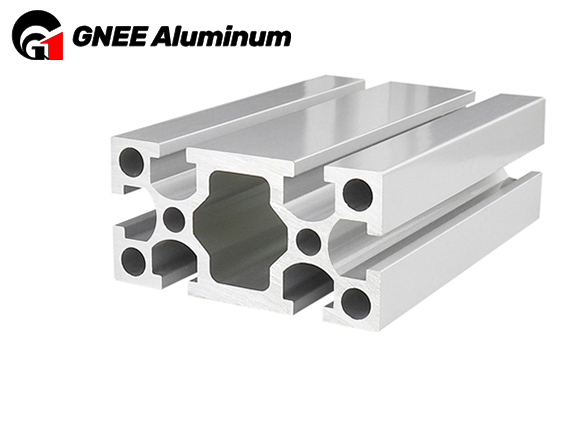

V Slot Aluminium Profile
A V slot aluminium profile is a type of aluminum alloy extrusion with a V-shaped groove, commonly used in industrial manufacturing and assembly systems. Its main features and uses are as follows:
V slot aluminium profiles combine linear motion with modular structural framework systems. They are lightweight yet strong, providing an ultra-smooth track for precise movement.
GNEE has shipped over a million feet of V slots to businesses, classrooms, laboratories, and manufacturers worldwide, and the number continues to grow!
Just like working with wood, you can cut V slots on a cutting saw (using a metal blade) or even with a hacksaw. Then, you simply connect them using a screwdriver.
V slot linear guides are precise, easy to use, and their modularity allows you to infinitely control your design.
| Product | V Slot Aluminium Profile |
| Material | 6063 aluminium alloy |
| Temper | T5 |
| Surface treatment | Mill finish,powder coating, anodizing, wooden grain coating,polishing,eletrophoresis,PVDF, sanding blasting, etc. |
| Size | 60 series |
| Slot width | customization |
| Length | 6M |
| Unit weight | 0.5-4KG/M |
| Appearance | Normally square,round and T-shaped,or customized |
| Color | Silver,black,blue,wood color,according to clients’ requirements. |
Slot Design: V slots are usually distributed along the length of the aluminum profile, with the grooves forming a V shape, facilitating the embedding and securing of fasteners.
Material: Typically made from 6063-T5 or other high-strength aluminum alloys, offering good corrosion resistance and mechanical properties.
Standardized Sizes: Available in various specifications and sizes, allowing for selection and combination according to different needs.
High Strength and Lightweight: The aluminum alloy material provides high strength while maintaining lightweight characteristics.

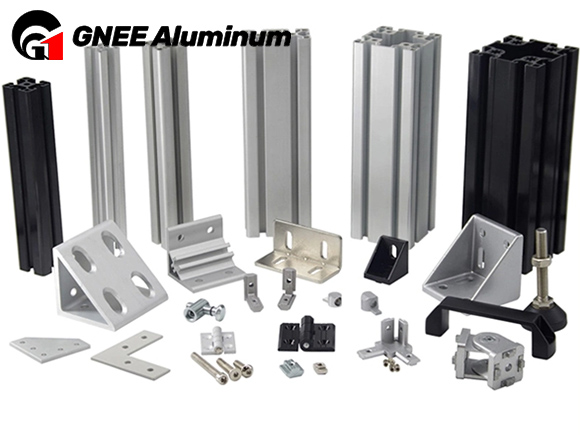

Modular: The slot design allows the use of standardized fasteners, enabling quick assembly and disassembly.
Versatility: Suitable for various structural applications, such as frames, brackets, guards, conveyor systems, and more.
Aesthetics: The surface is usually anodized, offering a good appearance and corrosion resistance.
